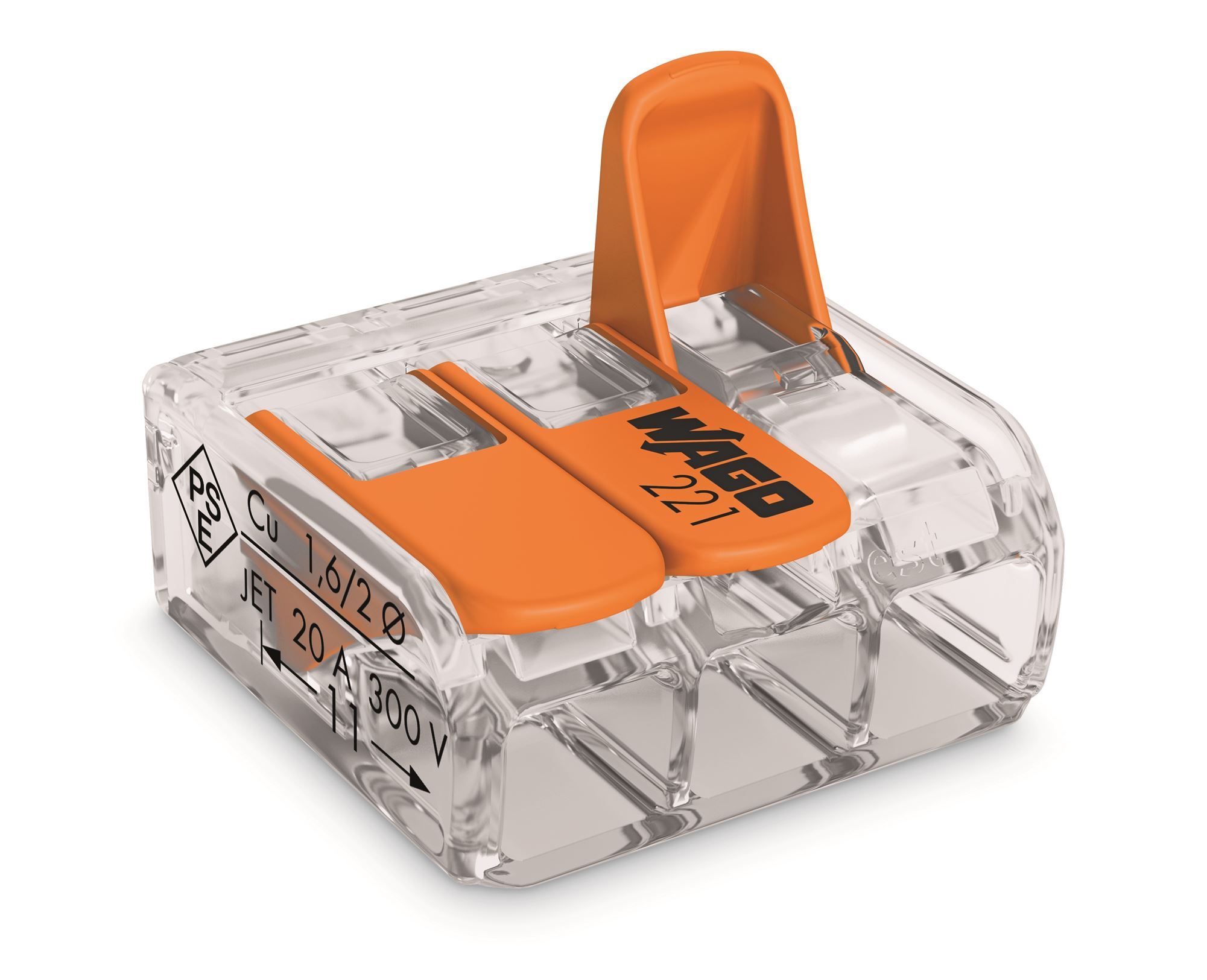

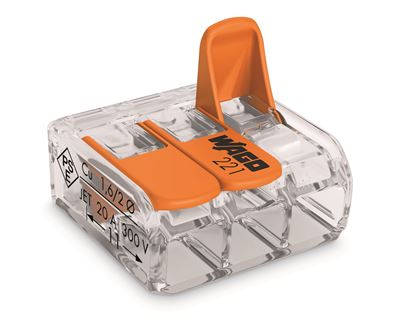

221-4134MM 32A 3 CONDUCTOR SMALL TRANSPARENT
Wago 221Compact Series
Compact Lever Splicing Connector 4.00mm 3 Way
COMPACT splicing connectors for all wire types;
3 conductor terminal block; with operating levers;
Max. operating temperature 85°C
The WAGO 221 Series compact lever connector allows fast wiring for solid, stranded & flexible conductors safely due to CAGE CLAMP connection.
Suitable for all wire types
100% Transparent housing
Voltage: 240/450v
Current: 32 A
Connect: 3 Cables
Solid - [mm²] 0.2 – 4.0 mm²
Stranded - [mm²] 0.2 - 4.0 mm²
Height: 8.3 mm
Width: 18.7 mm
Depth: 18.6 mm
Strip length: 11mm
